Raspberry Pi -  RFID Reader & Control Board

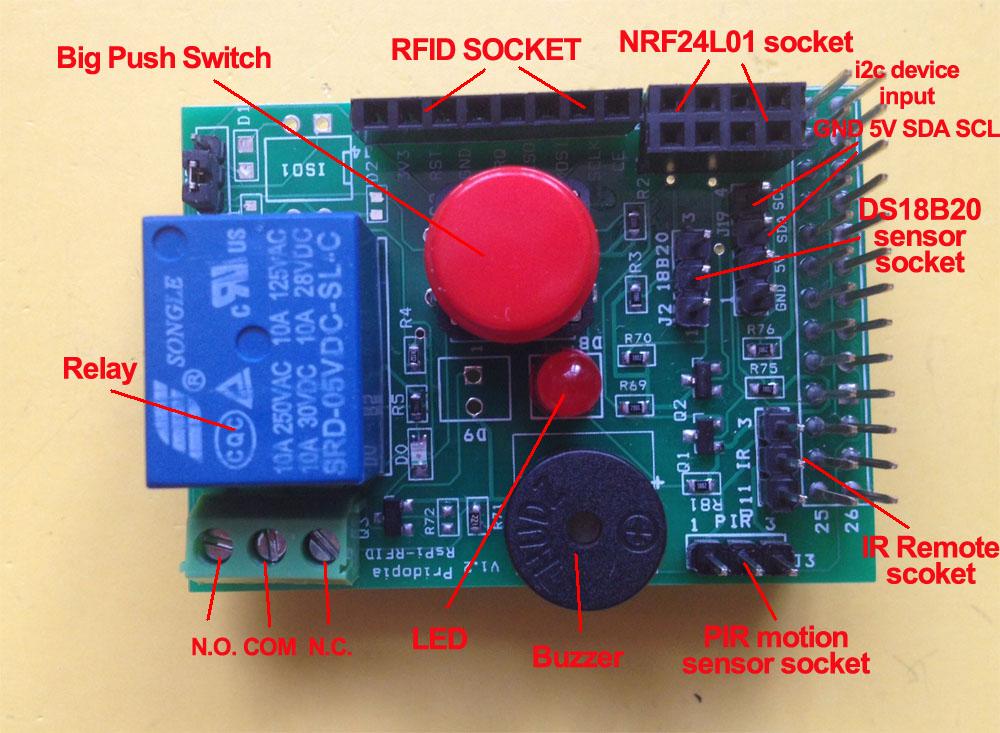

The RFID Reader  Board

1. provide 1 buzzer  (GPIO18)

2. provide 1 Big Push Switch (GPIO27)

3. provide RFID socket ( SPI signal) / NRF24L01 socket (SPI signal)

    you can choose use RFID or NRF24L01  ( both use SPI signal)

4. Provide 1 extra i2c device input port, for 5V device (with Logic Level converter)

5. provide DS18B20 temperature sensor socket (GPIO4)

6. provide IR Receiver sensor socket (GPIO23)

7. provide IR PIR motion sensor socket (GPIO22)

8. provide one Relay (GPIO17)



RFID Reader demo

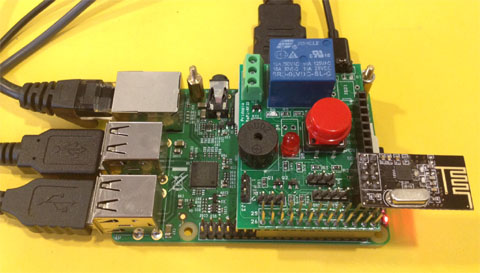

NRF24L01 demo

NRF24L01  WiFi Scanner demo



RFID reader plug-in RFID socket



MF RC522 is applied to the highly integrated read and write
13.56MHz contactless communication card chip
Low-voltage, low-cost, small size of the non-contact card chip to read and write
Smart meters and portable handheld devices developed better choice
The MF RC522 use of advanced modulation and demodulation concept completely integrated in all types of 13.56MHz passive contactless communication methods and protocols
14443A compatible transponder signals
The digital part of to handle the ISO14443A frames and error detection.
support rapid CRYPTO1 encryption algorithm, terminology validation MIFARE products
MFRC522 support MIFARE series of high-speed non-contact communication, two-way data transmission rate up to 424kbit/s



Specification:
Operating Current :13-26mA/DC 3.3V
Idle Current :10-13mA/DC 3.3V
Sleep Current: <80uA
Peak Current: <30mA
Operating Frequency: 13.56MHz
Supported card types: mifare1 S50、mifare1 S70、mifare UltraLight、mifare Pro、mifare Desfire
Environmental Operating Temperature: -20-80 degrees Celsius
Environmental Storage Temperature: -40-85 degrees Celsius
Relative humidity: relative humidity 5% -95%
Data transfer rate: maximum 10Mbit/s
Size: RFID-RC522 Module:3.9 x 6 cm The Standard S50 Blank Card :8.5 x 5.4 cm
Diameter of S50 special-shaped card: 3.1(max)





software support

Install tools for RFID kit in Raspberry Pi , in our Pi_Scratch_v268  folder” Installer”

sudo python RFID-Installer.py     -- if you already install  previous Pi_Scratch ver already.

first time user, use    sudo python Install.py



  RFID reader & Relay  control

Support our Pi_Scratch software   Detail

Scratch control demo

1)Command "RFID"+"INIT"+"0" for ce0
or "RFID"+"INIT"+"1" for ce1
will initial SPI signal to active RFID Reader
2) you will see "LastRFID" & "RFID" in Sensors



Scratch demo read RFID and GPIO output



scratch demo code ( read card and compare with database)



ADD RFID Card into data base

Press “space” key then scan your RFID card





Demo  program

  User Manual

scratch demo file

     RFID-Reader-kit2.sb

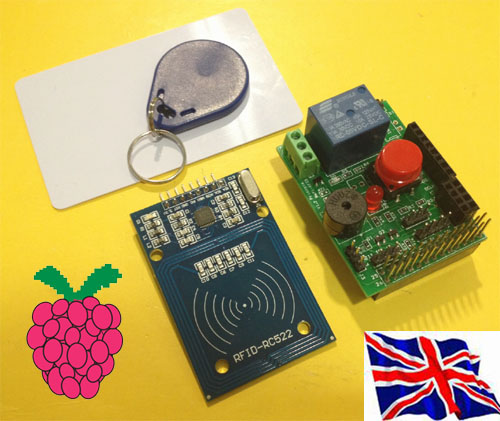

Package Content

  1x Rs-Pi  RFID Reader

1x Key Chains

   1x S50 Fudan  Card

1x 1 Relay RFID Kit Board

1x manual
