Raspberry Pi - B+ Vending System Board



Raspberry Pi - B+ Vending System Board











Vending-Pi Cloud Service   Cloud web site  detail



  • Easy to use:
    Boots straight into the software. No need for specialist configuration.
    Works as soon as it is booted.
    Easy troubleshooting, Green Light flash = running, Orange Light = Transfering Data, Red Light = Error.
  • No Human Error:
    No need to count all the coins or stock in the machine, the software handles all cash flow.
    Easy management of data, saved by Serial number + Data & Time.
    Notification if there was an error whilst transferring / collecting data.
  • No monthly charges:
    No monthly charge for 3G ( all data is transmitted over Bluetooth ).
    No monthly charge for a SIM card for M2M data.
  • Low Power:
    The system runs off the Vending Machine power system over the MDB connector.
    The power draw from the MDB is 5 Volts. Very low power usage compared to the 12W / 34 Volts of just the cash acceptor.
  • Simple Debugging / Troubleshooting:
    Red LED Flashing = Error in the script.
    Red LED On = Error whilst booting up / software malfunction.
    Green LED On = Possible SD card crash.
    Orange LED On = Failed to transmit.
  • Easy Installation:
    2 Wires to connect, Audio Jack and a 6 Pin clip-in power connector.
    Power On & and wait for green flashing LED.
    Automatic Backup of all data to SD card including DEX Data & Temperature / Humidity Logs.



  The system housed inside the Vending Machine will collect data from the Vending Machine when a Technician / a valid person with the Android App + the right password connects to the RPi. This then allows them to download the data from the Machine and store it on the Android Phone / Tablet. The data is encrypted and cannot be edited or spoofed. The file is then uploaded to our secure servers and an accountant or manager can review the data such as coins in, coins out, coins stored, stock details, errors, and even temperature and humidity logs over time ( graph view )







Data collection and stock refill input APP for Android Tablet

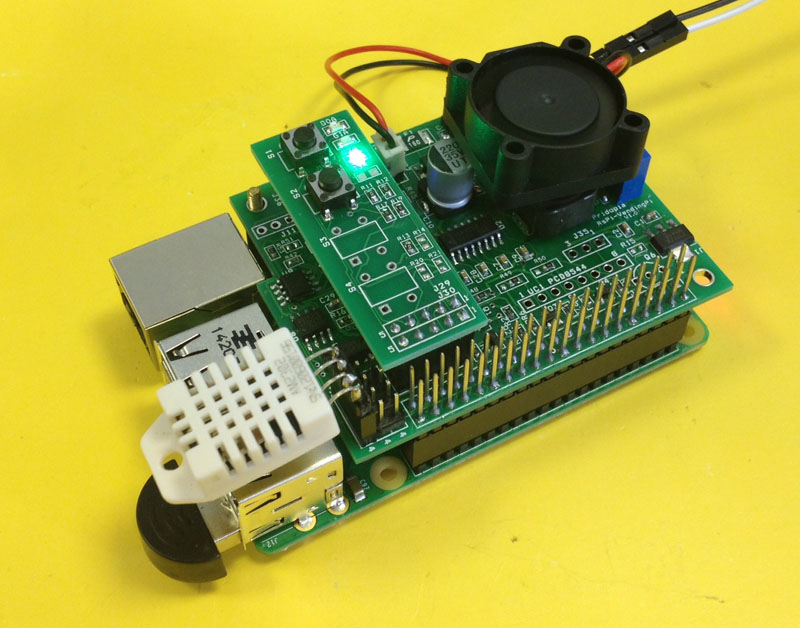

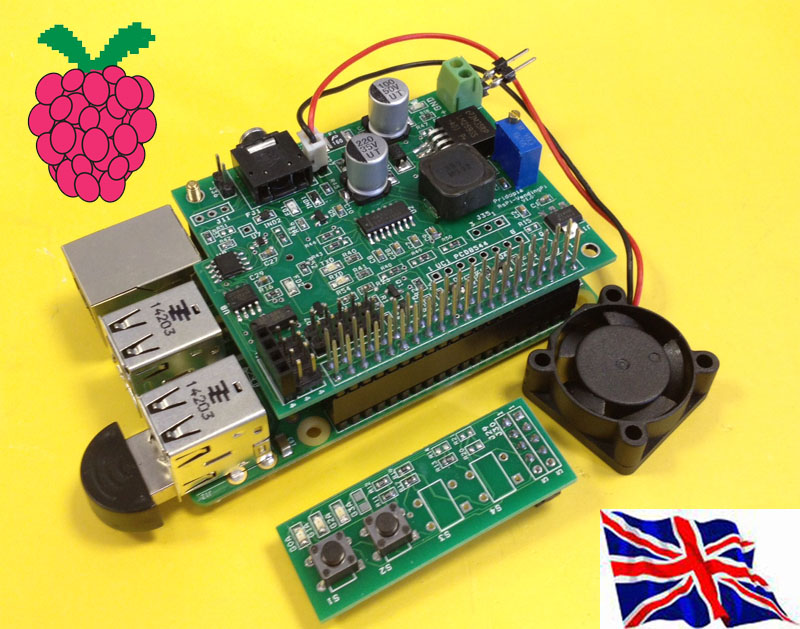

  1. Vending Pi Board

A) Gather data from DEX Input / Output Port (Vending Machine Side).

B) Collect data from Humidity & Temperature Sensors inside Vending machine.

  2. Stock Data (Total Sold, Product Price, Product Total Price).

  3. Android Phone / Tablet used to download data from Raspberry Pi system via  Bluetooth.

  4. Stores data locally ready to upload to server or to upload to PC then to server (Web Interface)

  5. Provides GPS location input for Vending Machine.

  6. Check Vending machine location through GPS (Through Android Smart phone/Tablet)

  7. On board Temperature sensor can control mini cooler fan for Vending Board system.

  8. Status LEDís for error checking / troubleshooting.

  9. 2 micro switch to provide basic control ( shutdown, reboot)













Package Content

  1x Rs-Pi Vending System Board

1x Raspberry Pi B+ with 8GB Micro SD Card

1x Power cable

1x User Manual
