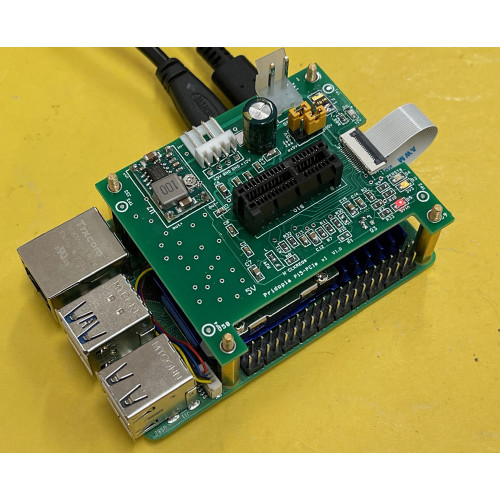

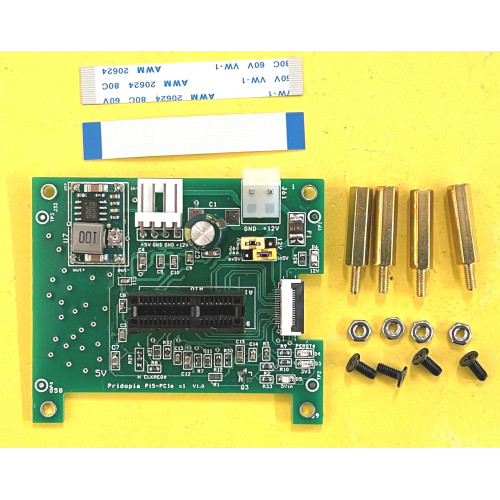

The PCIex1 slot board for Raspberry Pi 5 is designed to convert the Raspberry Pi 5's PCIe into a PCIe x1 slot.

The board provides an external 12V power supply header option for high-power PCIe cards.

Features

• Compatibility: Designed for Raspberry Pi 5
• PCIe x1 Slot Design: Structurally compatible with PCIe x1
• PCIe x1 Supports: Supports PCIe x1 interface in both Gen2 and Gen3 standards
• Power Supply flexibility: Provides an external 12V power supply header for high-power PCIe cards.

Specifications

• internal PCIe 5V power convert to  3.3V for PCIe x1 slot:  +3.3V/3A
• PCB Size: 65x55mm

Options:

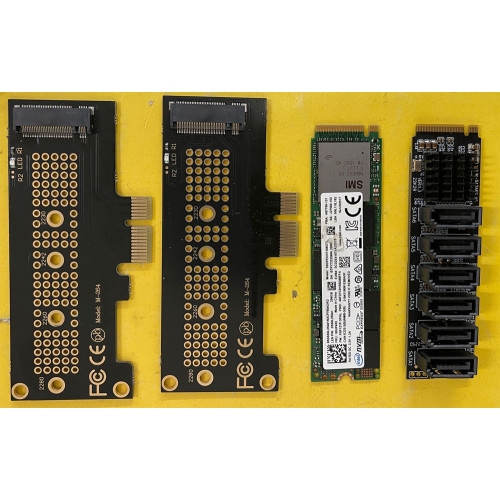

1. PCIe x1 to M.2 Adapter

   • Supports M.2 cards in four sizes: 2230, 2242, 2260, and 2280

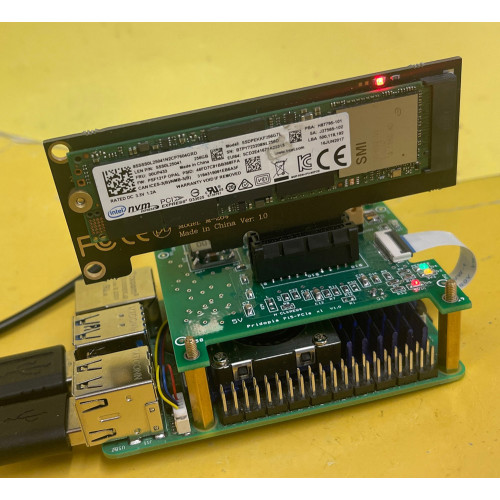

   • Compatible with NVMe SSDs and SATA cards

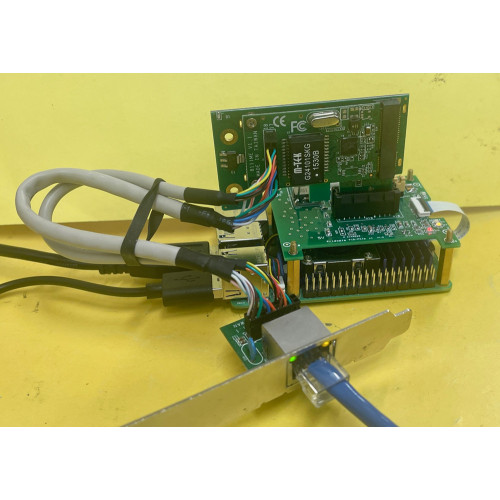

2. PCIe x1 to Mini PCIe Adapter

   • Supports Mini PCIe cards such as Ethernet, Serial/Parallel, and IEEE 1394 (FireWire) cards

With either of these adapter cards, no 12V power input is required—they can operate with just a 5V power supply.
