MF RC522 is applied to
the highly integrated read and write
13.56MHz contactless
communication card chip
Low-voltage, low-cost,
small size of the non-contact card chip to read and
write
Smart meters and
portable handheld devices developed better choice
The MF RC522 use of
advanced modulation and demodulation concept
completely integrated in all types of 13.56MHz
passive contactless communication methods and
protocols
14443A compatible
transponder signals
The digital part of to
handle the ISO14443A frames and error detection.
support rapid CRYPTO1
encryption algorithm, terminology validation MIFARE
products
MFRC522 support MIFARE
series of high-speed non-contact communication,
two-way data transmission rate up to 424kbit/s
Specification:
Operating Current
:13-26mA/DC 3.3V
Idle Current
:10-13mA/DC 3.3V
Sleep Current: <80uA
Peak Current: <30mA
Operating Frequency:
13.56MHz
Supported card types:
mifare1 S50、mifare1 S70、mifare UltraLight、mifare
Pro、mifare Desfire
Environmental Operating
Temperature: -20-80 degrees Celsius
Environmental Storage
Temperature: -40-85 degrees Celsius
Relative humidity:
relative humidity 5% -95%
Data transfer rate:
maximum 10Mbit/s
Size: RFID-RC522
Module:3.9 x 6 cm The Standard S50 Blank Card :8.5 x
5.4 cm
Diameter of S50
special-shaped card: 3.1(max)
software support
Install tools for RFID kit in Raspberry Pi , in
our Pi_Scratch_v268 folder” Installer”
sudo python RFID-Installer.py
-- if you already install previous Pi_Scratch ver
already.
first time user, use
sudo python Install.py
(1) GPIO (SPi)
RFID Reader & GPIO Relay output
RFID reader & Relay & Step Motor control
Support our Pi_Scratch software
Detail
Scratch control demo
the RFID socket we use CE0 for signal
1)Command "RFID"+"INIT"+"0" for use CE0
or Command "RFID"+"INIT"+"1" for use CE1
will initial SPI signal to active RFID Reader
2) you will see "LastRFID" & "RFID" in Sensors

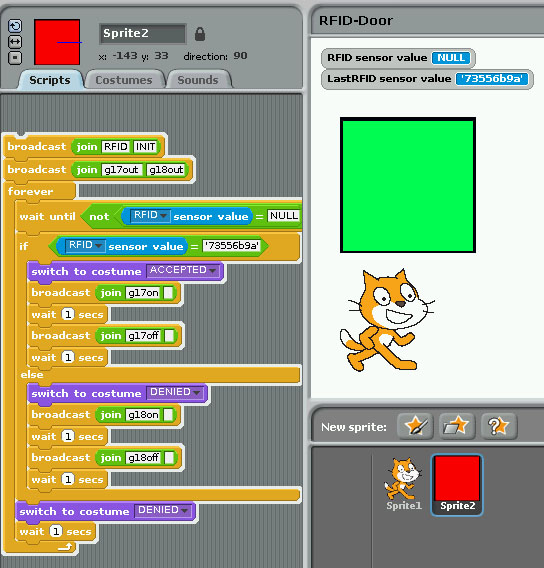

Scratch demo read RFID and GPIO output
scratch demo code ( read
card and compare with database)
ADD RFID Card into data base
Press “space” key then scan your RFID card
Active with Step Motor and
GPIO Switch input
Demo program
User
Manual
scratch demo file
RFID Door.sb
RFID Reader.sb
GPIO-Card-RFID-Door.sb
|
Package Content
1x Rs-Pi
RFID Reader
6 x
20cm male to male cable
1x
S50 Fudan Card
1 x
Key Chains
1x 2
Relay Step Motor GPIO Board
1x manual |
|
|
